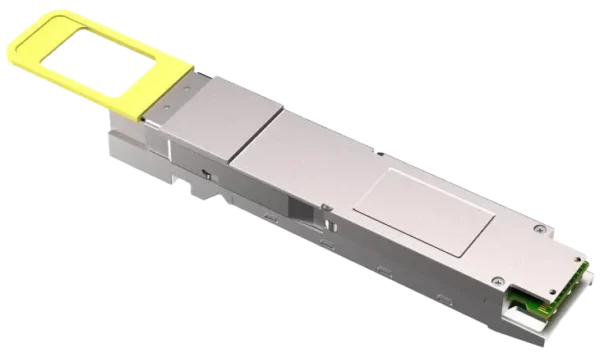

STC-40026 | 800G OSFP800 2×DR4 LPO Optical Transceiver

Product Overview

The STC-40026 from Swedish Telecom Opto’s LPO Series is an 800 Gb/s OSFP800 2×DR4 module designed for high-density and power-efficient data-centre applications. Based on the Linear Pluggable Optics (LPO) architecture, the module eliminates the internal DSP and instead leverages the host ASIC for signal processing. This results in significantly lower power consumption, reduced latency, and simplified thermal design — essential for AI clusters, hyperscale data centres, and high-performance computing environments.

The STC-40026 supports 8 × 100 Gb/s PAM4 lanes, providing an aggregate data rate of 800 Gb/s across dual MPO-12 APC connectors. It enables transmission distances of up to 500 m over single-mode fiber (SMF), making it ideal for leaf–spine interconnects, intra-DC fabrics, and edge connectivity where efficiency per watt matters most.

Key Features

• 800 Gb/s aggregate data rate (8 × 100 Gb/s PAM4 lanes)
• Linear-drive (LPO) design — no DSP for lower power and latency
• Supports up to 500 m reach over SMF
• ≤ 8 W maximum power consumption
• Compliant with IEEE 802.3db and OSFP MSA 5.0
• Supports CEI-112G-LINEAR-PAM4 electrical interface
• Dual MPO-12 (APC) optical connectors
• Hot-pluggable OSFP800 form factor
• Operating temperature range: 0 °C – 70 °C
• +3.3 V single power supply
• RoHS 2.0 compliant and EU-tested

Applications

• 800G Ethernet interconnects in AI and ML data centres
• High-density leaf–spine fabrics and aggregation layers
• Intra-data-centre and short-reach DCI links (≤ 500 m)
• Hyperscale and cloud network backbones
• Telecom and edge data-centre deployments

Standards & Compliance

• IEEE 802.3db 800GBASE-DR8 / 2×DR4
• CEI-112G-LINEAR-PAM4 electrical specification
• CMIS 4.0 management interface
• OSFP MSA 5.0 mechanical standard
• RoHS 2.0 compliant

Specifications

Why Choose EU-Tested LPO Modules

The STC-40026 has been independently validated in European test facilities for performance, thermal stability, and signal integrity. This EU testing ensures full compliance with regional standards and gives data-centre operators and integrators peace of mind when deploying high-performance optics.
