1.6T-DR8 – 1.6T OSFP224 500m Transceiver

Precision Engineered for Peak Performance and Exceptional Network Reliability

  • Quality Assurance
  • Risk Free Return Policy
  • 3 YEARS WARRANTY
  • Guarantee Compatibility and Reliability
SKU:STC-40050Categories: Compatible:

1.6Tbps OSFP224 optical transceiver module for short-reach high-performance connections – up to 500 meters

Product Overview

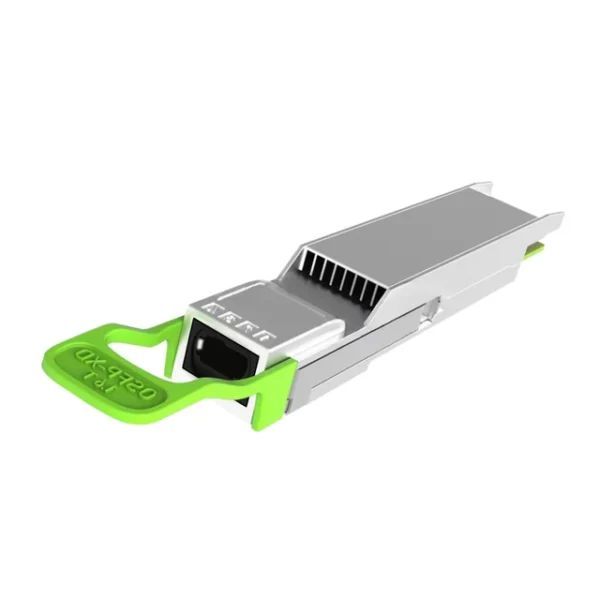

The 1.6T-DR8 OSFP224 Optical Transceiver is an InfiniBand and Ethernet 1.6Tb/s 2x800Gb/s Twin-port OSFP224, 2xDR4/DR8 single mode, Silicon photonics-based, parallel, 8-channel transceiver using two, 4-channel MPO-12/APC optical connectors at 800Gb /s each. The parallel single mode, data center reach 8-channel (2xDR4/DR8) design uses 200G-PAM4 modulation and has a maximum fiber-reach of 500-meters using 8 single mode fibers. The main application for 1.6T-DR8 OSFP224 is linking two switches together with up to 500 meters.

Key Features

  • OSFP224 form factor
  • 8x200G-PAM4 electrical lanes for 1.6Tbps total bandwidth
  • Reach: up to 500m over SMF
  • Center wavelength: 1310nm (DR8)
  • Optimized for low power and high throughput
  • Compliant with IEEE 802.3df, OSFP1600 MSA, and CMIS 5.x standards
  • Digital Diagnostics Monitoring (DDM) supported
  • Ideal for AI/ML and data center aggregation

Typical Applications

  • 1.6T Ethernet interconnects
  • AI/ML cluster backbone networks
  • Hyperscale and cloud data centers
  • Short-reach data center aggregation links

Technical Specifications

Parameter Value
Form Factor OSFP224
Data Rate 1.6 Tbps
Wavelength 1310nm (DR8)
Distance Up to 500m
Fiber Type Single-Mode Fiber (SMF)
Connector OSFP224
Power Consumption Low
Operating Temperature 0°C to 70°C
DDM/DOM Supported
Compliance IEEE 802.3df, OSFP1600 MSA, CMIS 5.x



Compatibility

  • NVIDIA/Mellanox MMS4A00 Compatible

Why Choose Swedish Telecom Opto?

  • European-based support & logistics
  • Full multi-vendor compatibility
  • Extensive QA testing with performance reports
  • Customized stock for projects and repeat supply
  • 100% verified and coded
  • Lower cost – no brand tax
  • Trusted since 2004

Need a Quote or Sample?

This module is available in volume or with custom tuning.

👉 Request a quote or contact our optical team today. sales@swedishtelecomopto.com
